sMove: An Access System

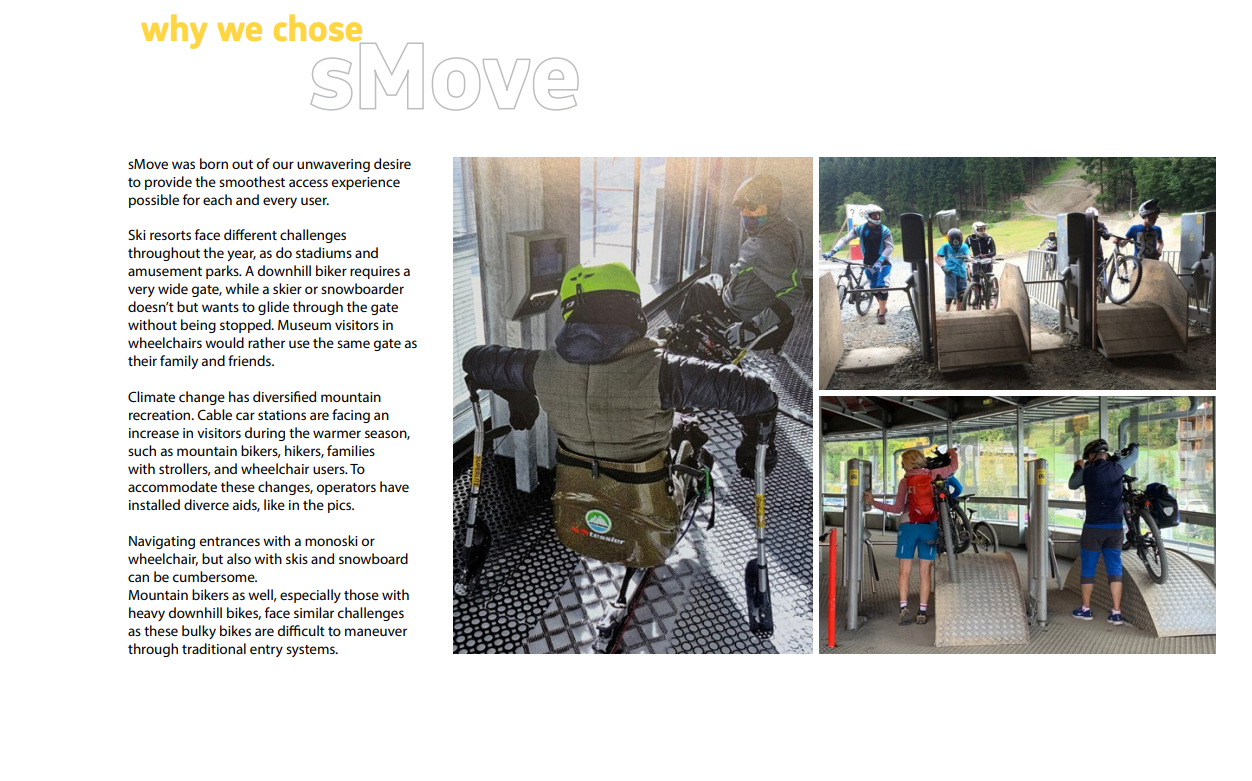

sMove was developed for climate-driven, year-round access needs across outdoor destinations and urban venues, where diverse users and gear must share one entrance. The primary challenge was a comfortable, user-friendly gate for everyone that still provides the barrier operators require and security in harsh outdoor conditions. A compact modular layout shifts quickly between separated lanes and a wide inclusive passage, reducing the need for additional gates. The compliant WAVE folds into an X for clear signaling, yields on contact, and—together with radar-based detection and contactless credential options—keeps flow smooth and injury-free while concealing complex technology in a robust housing.

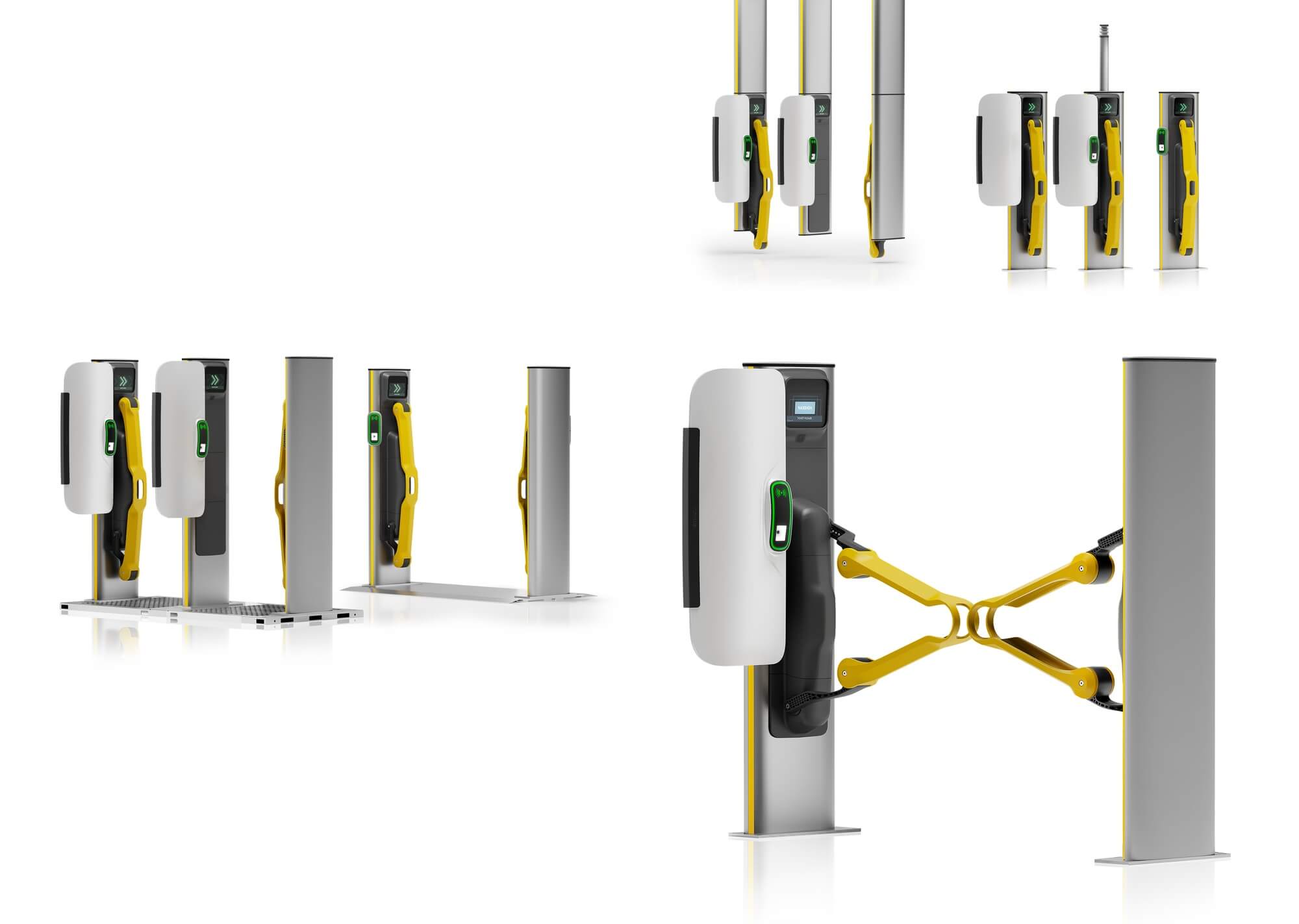

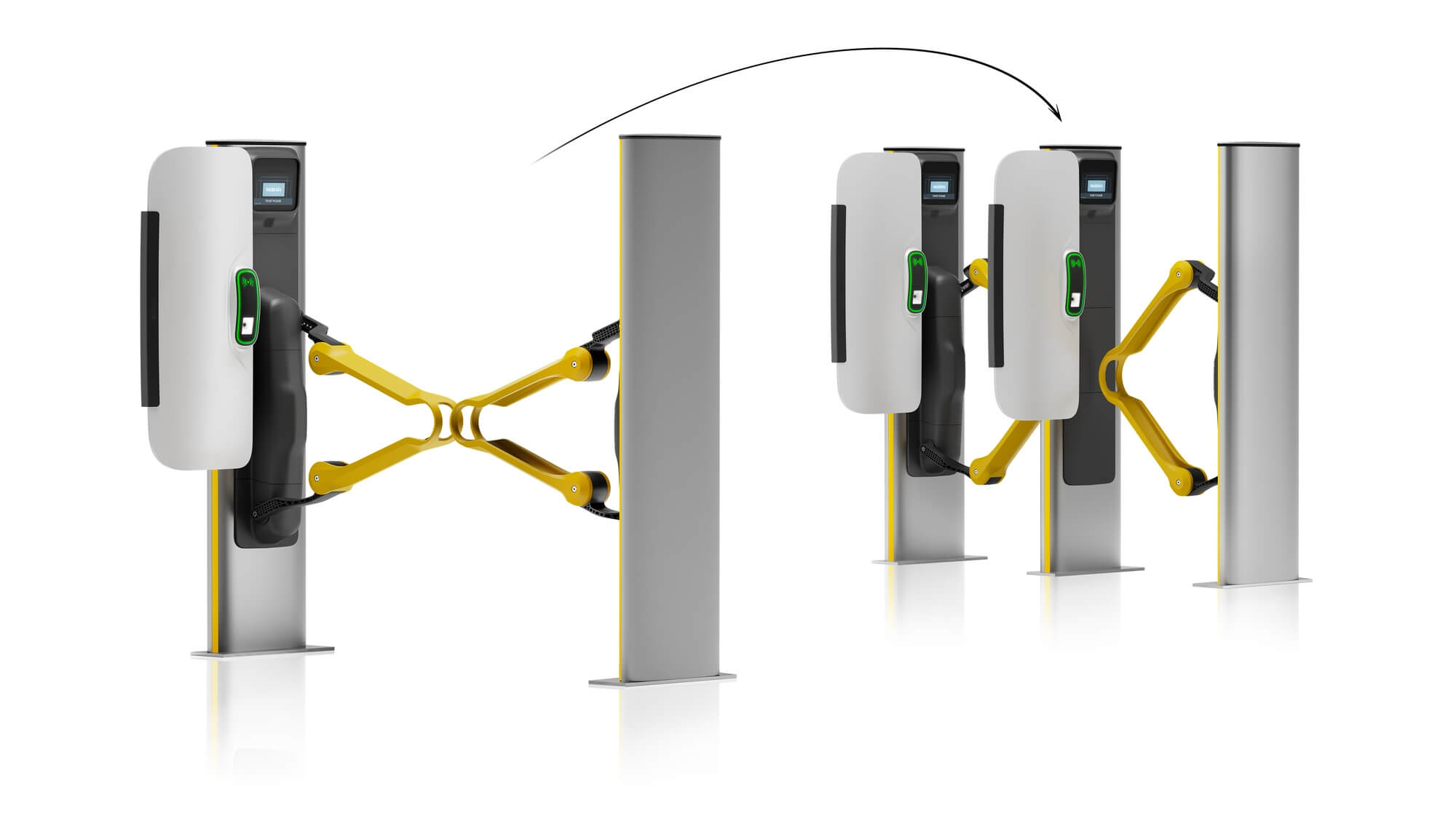

The solution is a modular gate architecture built from two opposing single gates and a center column, enabling the layout to switch between separated lanes and one wide, inclusive passage through a simple reconfiguration. A folding WAVE barrier was shaped as a compliant mechanism: it forms an X as a clear stop cue, retracts to “disappear” when access is granted, and yields if a person or object is in the passage. Radar sensing and multiple credential options are integrated into the housing to maintain smooth flow while keeping the hardware compact and protected.

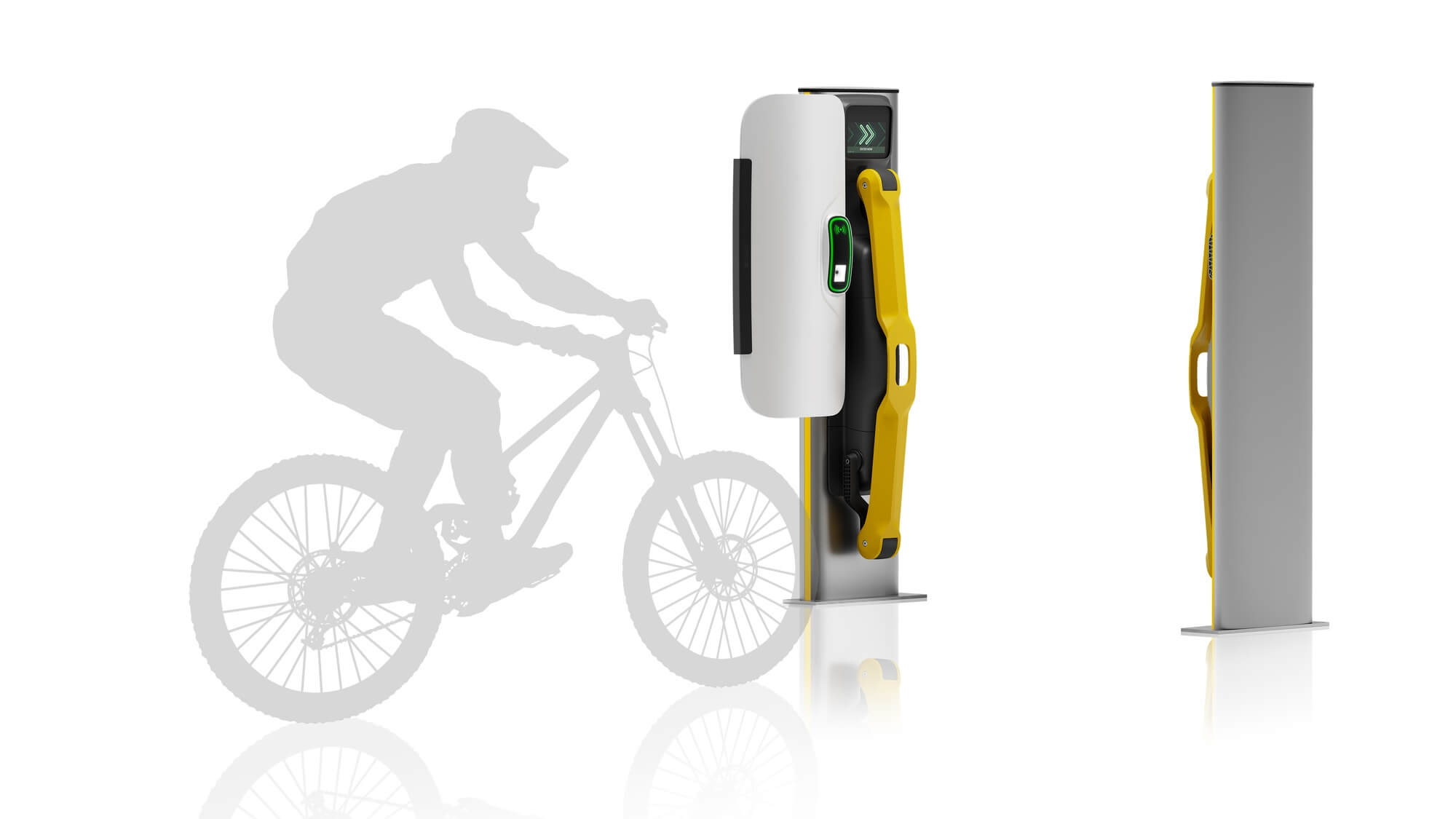

Focused on inclusivity sMove offers a vastly improved user experience by being more accessible and welcoming to everybody. It is optimized to eliminate hassles for every user, allowing seamless and easy passage for people carrying various items and providing ample space for wheelchairs, strollers, or energetic toddlers. In addition, sMove ensures quick and safe evacuation in the event of an emergency, adding an essential layer of safety for all visitors.

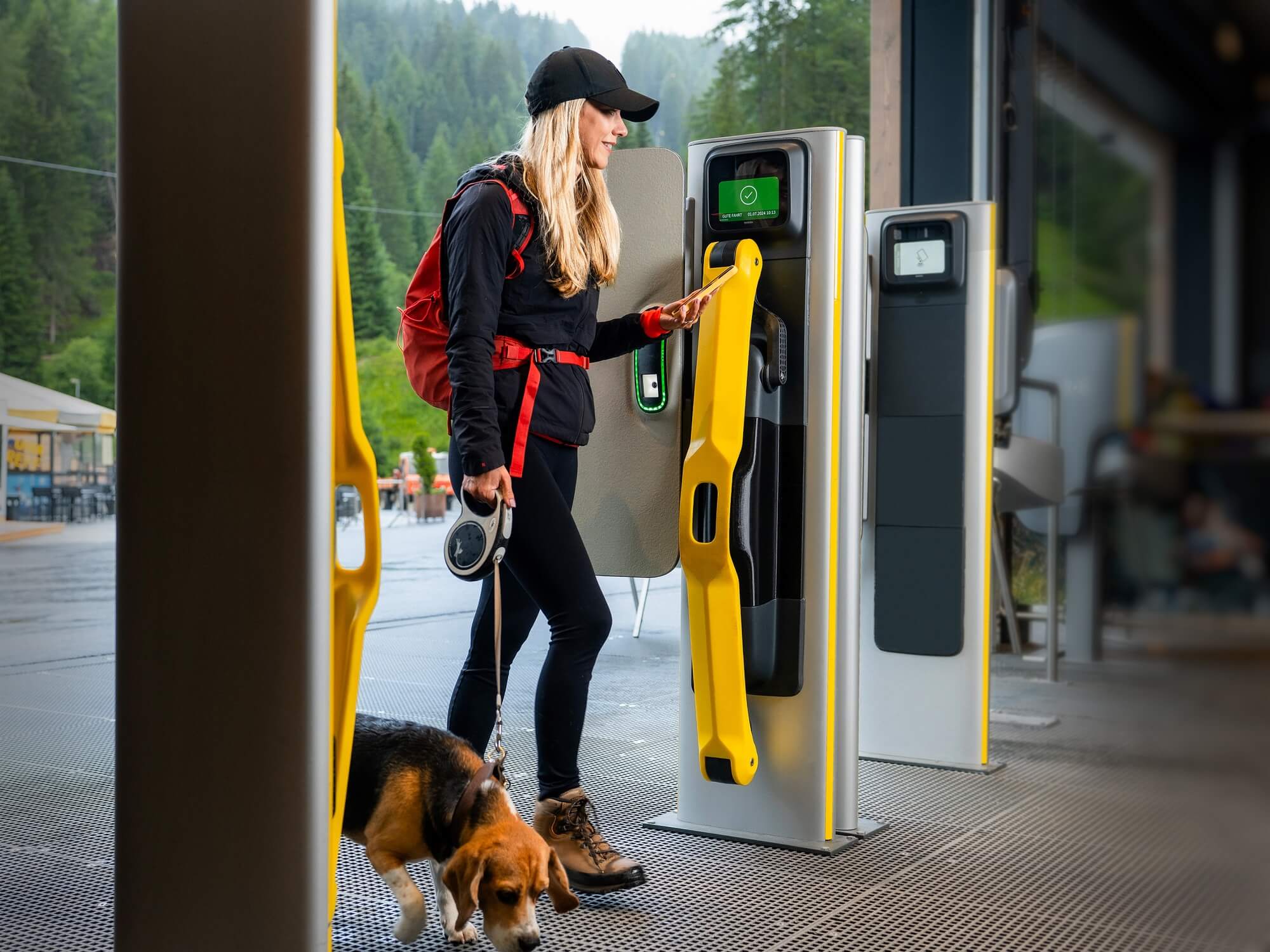

The sleek, unique folding ‘WAVE’ barrier intuitively signals when access is granted, gracefully retracting and disappearing to the side to reveal a clear path. When closed, the ‘WAVE’ transforms into an abstract X-shape, creating a gentle physical and visual barrier with its friendly yellow signal color. Due to the smart radar technology integrated in sMove persons and objects can be detected in an optimal way to ensure the highest possible security level. It incorporates biometrics, Bluetooth, and high-performance long-range RFID antennas for optimal efficiency and future-proof use-cases. Featuring soft components and automated people detection technologies, sMove sets a new standard for universal accessibility by improving space and enhancing the user experience with greater safety, convenience, and flexibility.
