MicroFleet OneDock: Secure, Smart and Connected Universal Charging Station for Light Electric Vehicles (LEVs)

Designing a secure universal charging solution for all LEVs is deceptively complex. The solution needed to be:• Able to accommodate a wide range of vehicle formats and sizes• Compatible with, and able to detect varied vehicle battery types, capacities and specifications• Theft resistant• Safe to use • Weatherproof• Easy to find, understand and operate• Smart and internet connected• Compatible with both privately owned and fleet owned LEVs• Modular and scalableTo be genuinely compelling, the system needed to provide individual users with real-time information about the security, location and charge status of their vehicle, while enabling full functionality fleet monitoring capabilities.

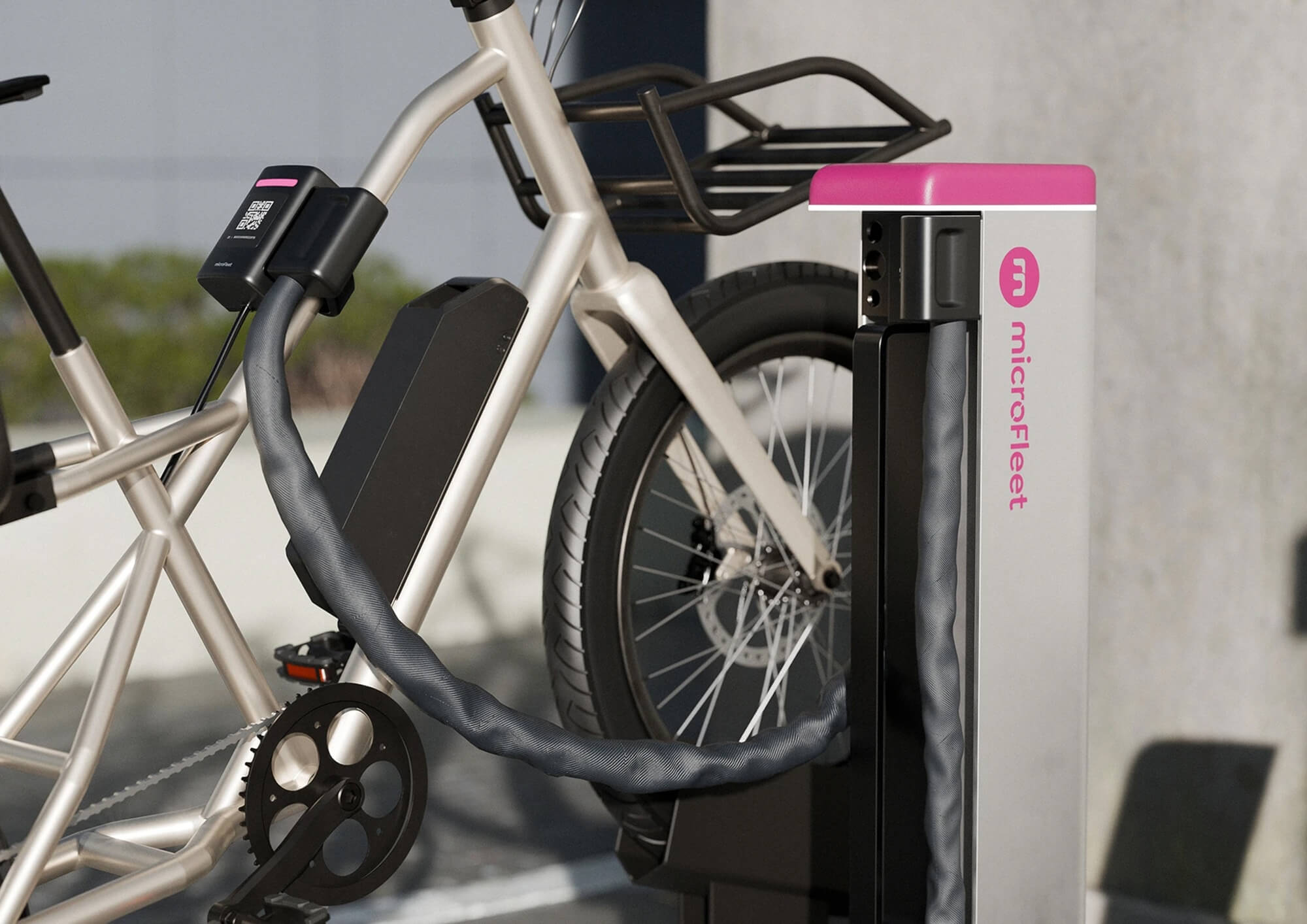

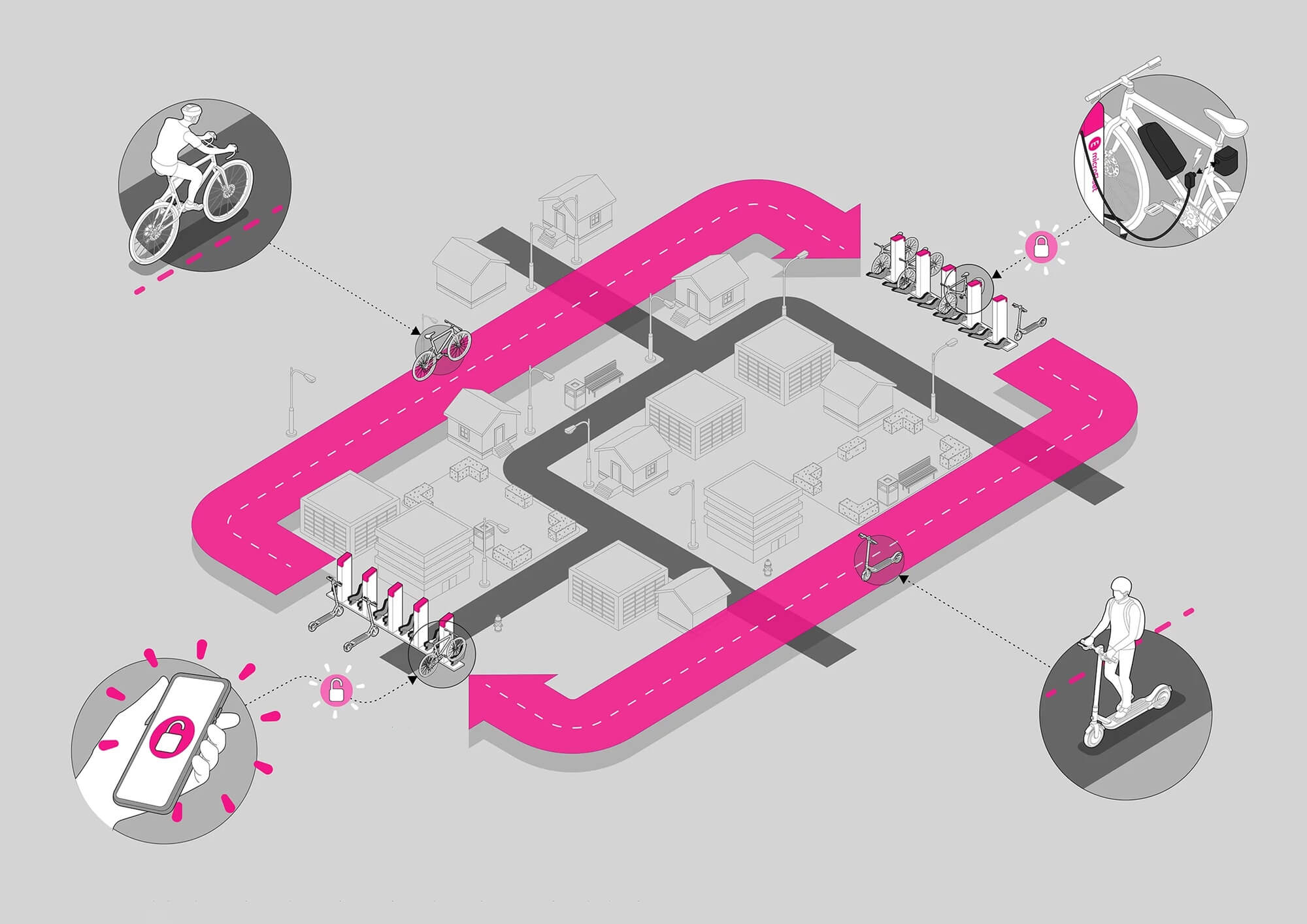

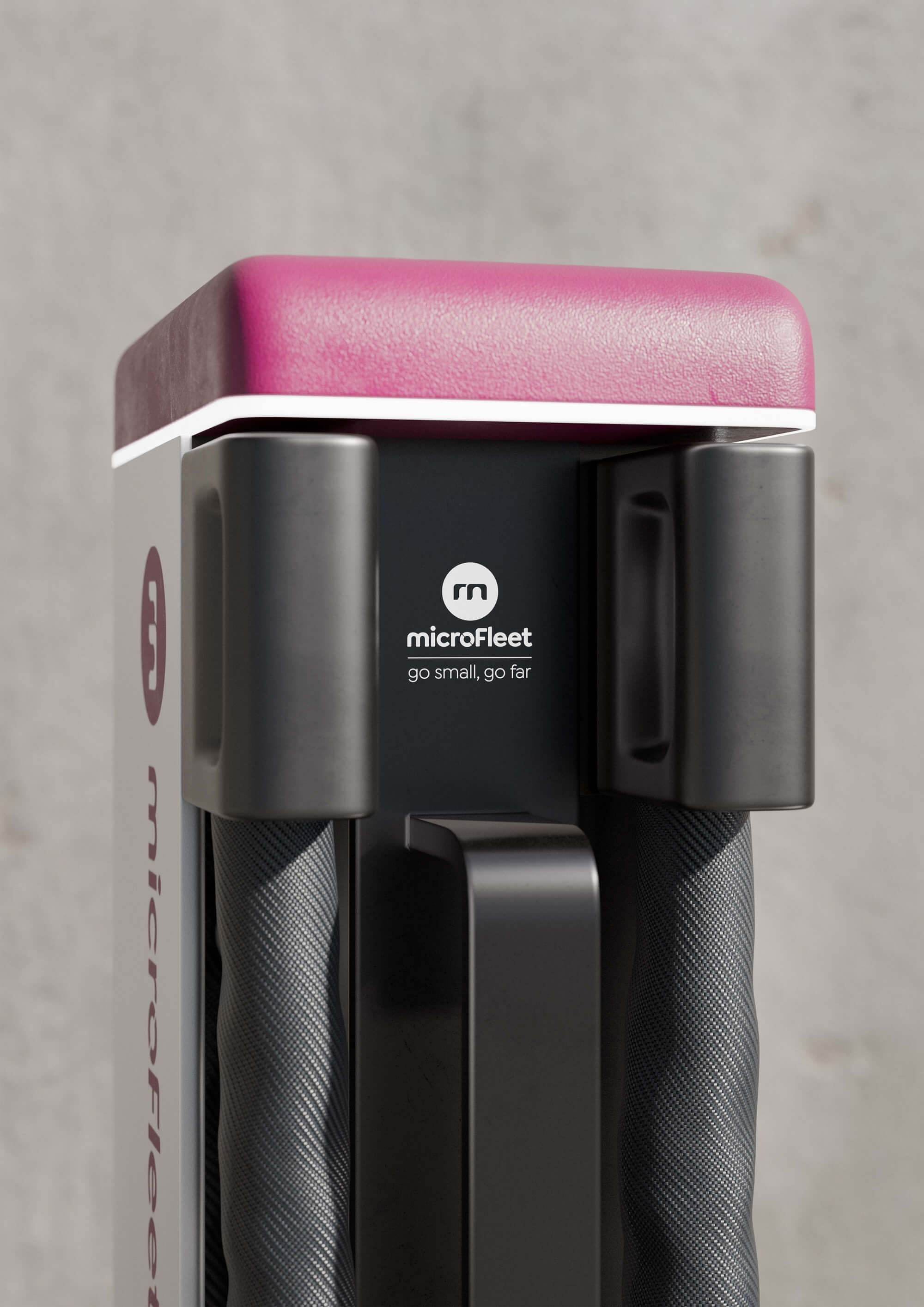

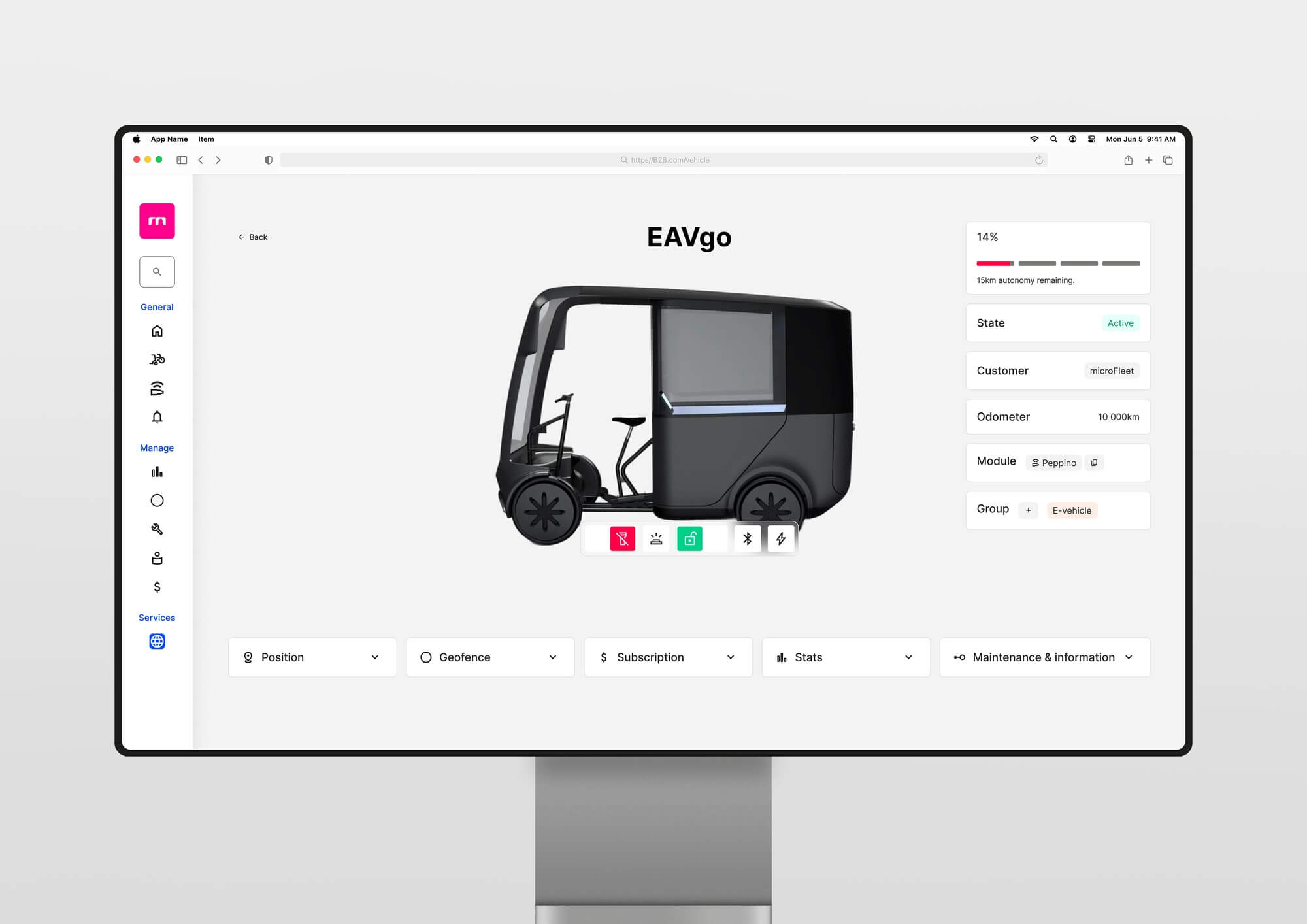

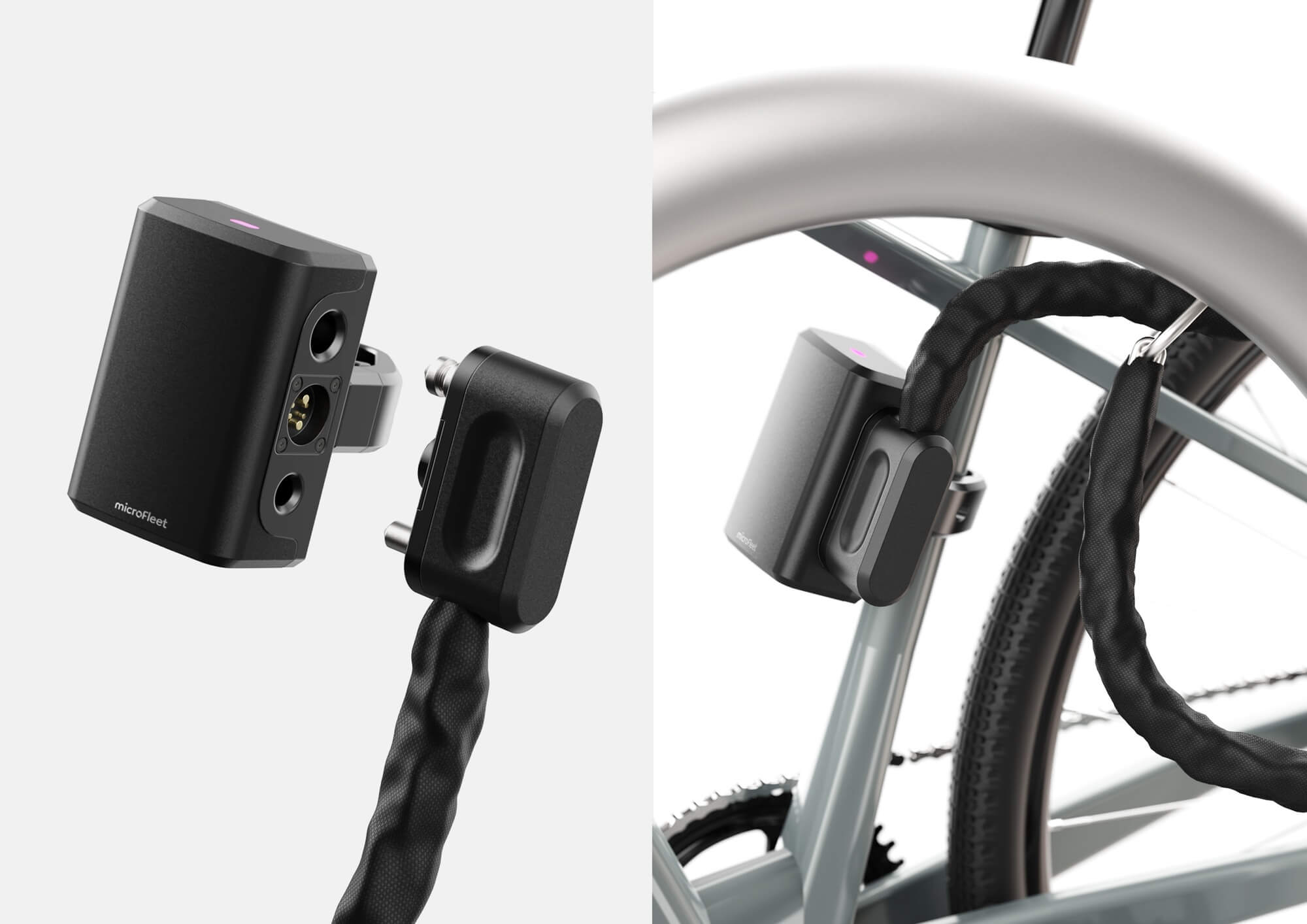

MicroFleet is based around a rugged OneKey charging lock securely mounted to the LEV, connected to the battery port and assigned a unique ID, providing GPS tracking, motion detection and notifications.OneDock modular universal internet-connected charging stations pair to the OneKey with a flexible, durable cable providing secure locking, charging and remote monitoring. A smartphone app lets users see battery status, and alerts to unauthorised LEV movement while triggering an audible alarm on the OneKey.A fleet management dashboard lets operators:• control permissions and dock access• geofence areas to control vehicle parking• set user pricing• analyse GPS and in-depth data

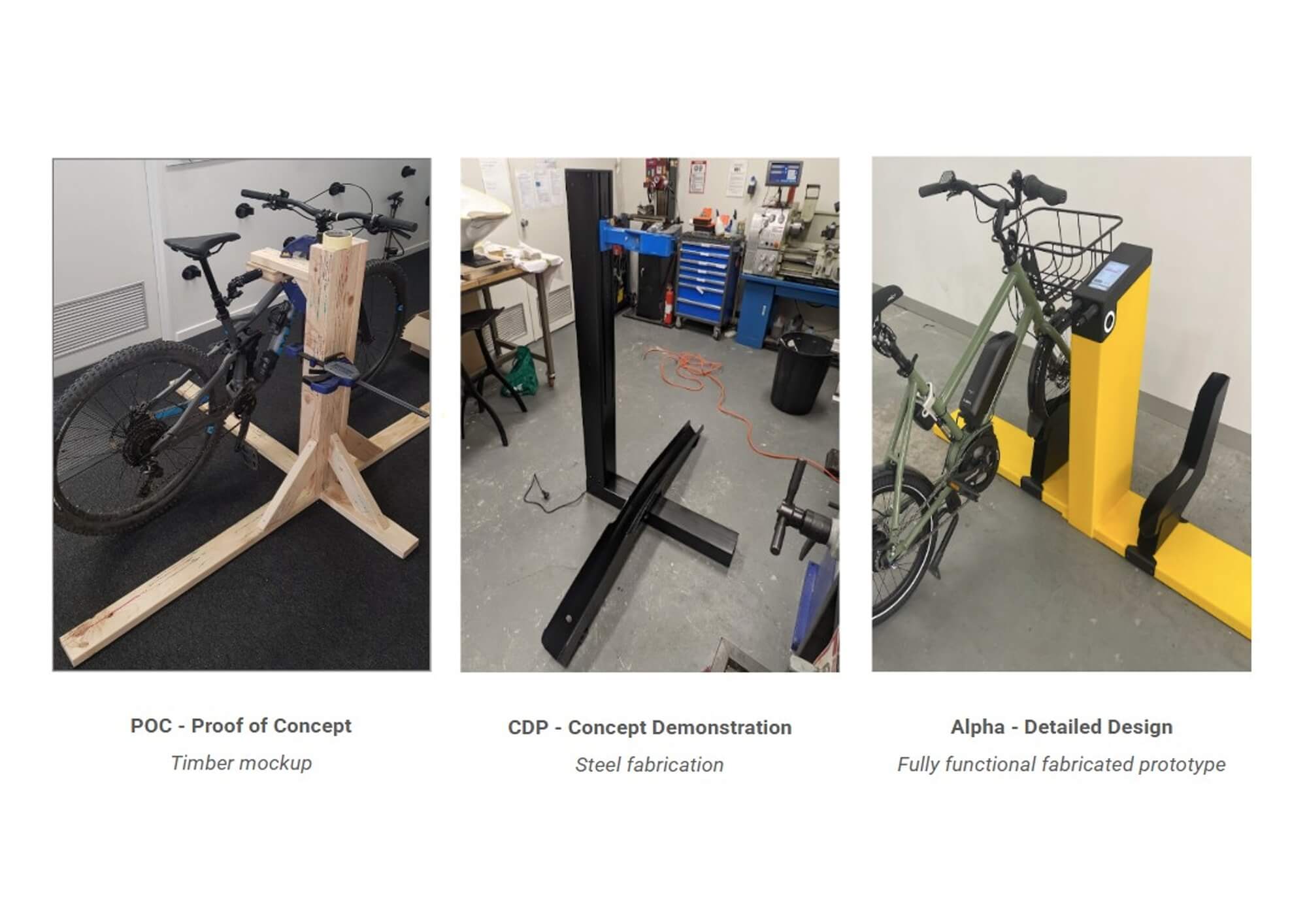

As a tech startup, MicroFleet aimed to create the first fully-functional proof-of-concept demonstrator system for universal LEV docking, locking and charging.After developing and integrating all the necessary parts of the patent-pending system, including OneDock, OneLock with custom electronics, smartphone app, and fleet management software, MicroFleet partnered with the National Transport Research Organisation to conduct a trial at Australia’s largest urban renewal project - Fishermans Bend Precinct.The trial ran smoothly, and has generated interest from universities, military campuses and property developers in Australia and overseas. MicroFleet is working to secure a deal with a large client partner to scale operations.

IP Rating:External chassis – IP41Charger (internal) – IP40, Operating Temperature: -30C to +50CElectrical enclosure (internal) – IP55OneKey housing and clamp are aerospace aluminium and UV-resistant nylon: IP 65 Vehicle Security:OneDock charging and security cable has 3 elements:6mm high-tensile, hardened and tempered alloy steel chain, bolt cutter resistant. Optional 8mm or 10mm for high-risk locations.10mm diameter steel cable conduit to protect DC power and signal cables from damage in normal use. Industrial grade, HD nylon braided sleeving for additional cutting and scratch protection.Onekey chassis with integrated locking feature is made from 6061-T6. Lock latch is 316 marine grade stainless steel. Electrical and Safety:Input voltage: 240V mainsOutput voltage: 12 to 63V (up to 15S battery packs), higher options availableOutput power: 0-8A, maximum 360W / vehicle Grin Satiator Charger:Safety: UL 1012, CSA C22.2 No. 107.2, CE / IEC 60335-1/2-29Emissions: FCC Part 15 B, EN55014, EN 61000-3-2, EN 61000-3-3Grounded aluminium chassis, DC output floating.Protection: Output Short Circuit, Reverse Battery, Over-Voltage, Under-voltage, Over-Current andOver-Temperature protection.Sealed Electrical Enclosure: IP55 ABS enclosure. Compliance:OneDock is compliant with the Australian Bicycle Parking Standard (AS_2890.3-2015).
