Area Pro by XY Sense: World-Leading Next-Generation Occupancy Sensor and Insights Platform Enabling Optimisation of Workspace Using Real-Time Data

XY Sense wanted their nextgen occupancy sensor to be even more compelling - providing higher coverage and accuracy with fewer sensors - meaning lower acquisition, installation and running costs.• To achieve this ambitious target, each sensor would need:• Wider field of view• Higher resolution• Greater samples / second• AI enabled• Extreme onboard processing• Battery-free operation• Small footprintXY Sense realised they would need a custom designed sensor, advanced algorithm with machine learning capabilities and an abundance of computing power, all on-board a compact device.This created another challenge: how to manage the heat generated from all this AI performance, with low power requirements.

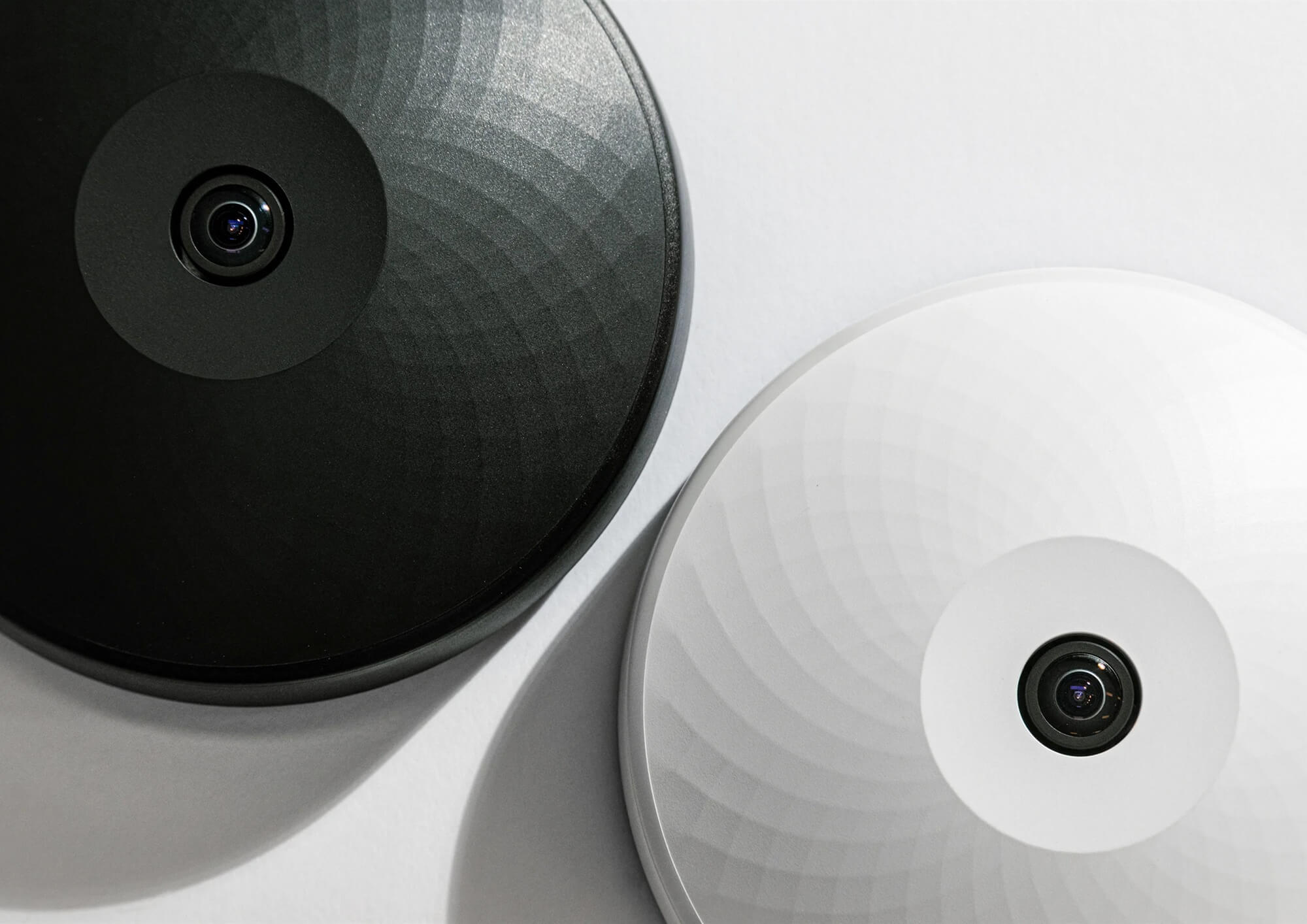

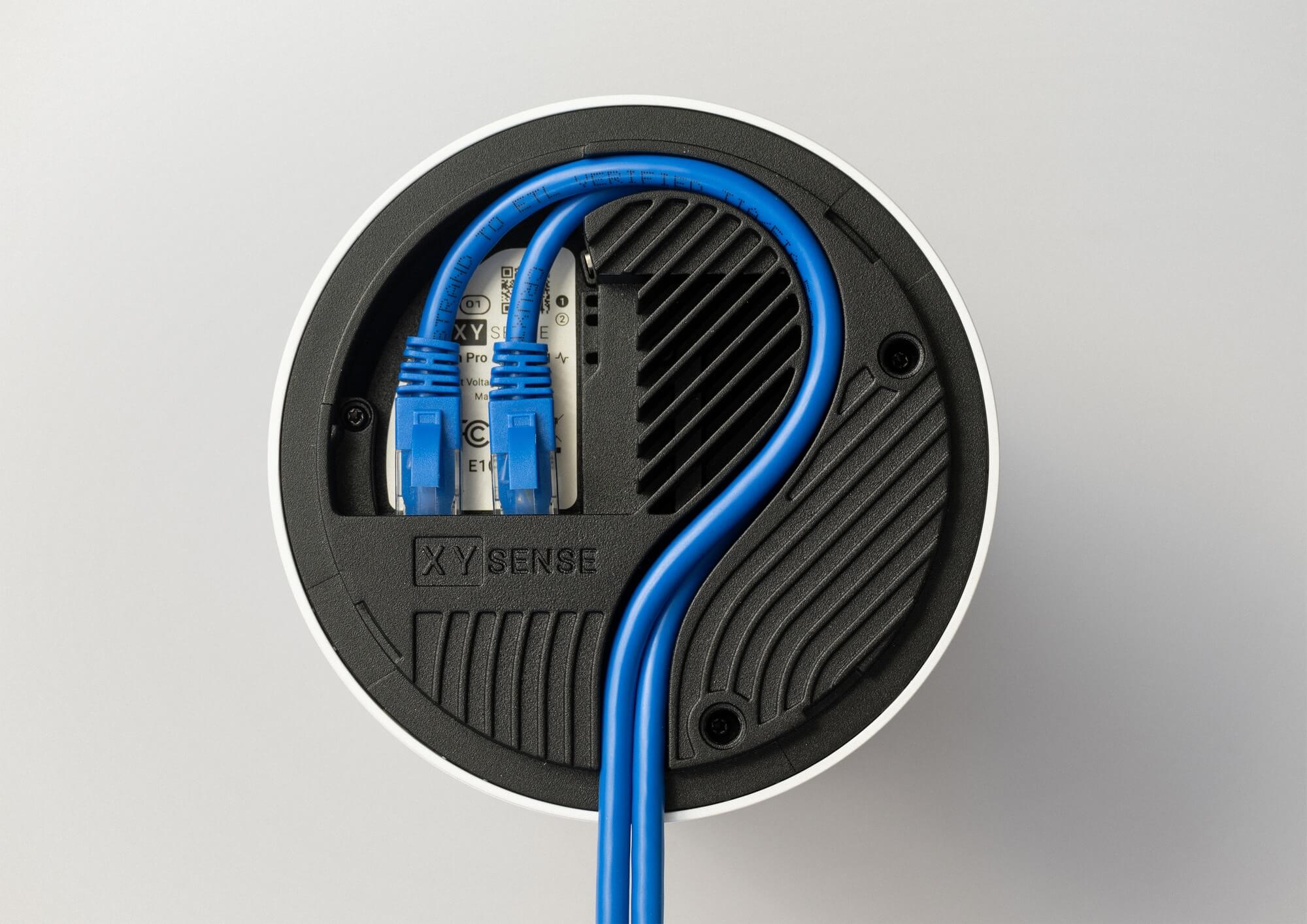

Area Pro represents a leap in sensor performance achieved with a quad-core processor and dedicated Neural Processing Unit combined with a bespoke sensor. Passive cooling is achieved using a sophisticated custom-engineered die-cast heat dissipator doubling as structural chassis. Outer casing incorporates subtle yet sophisticated surface patterning for a restrained yet distinctive aesthetic at home in high-end corporate environments. Senselink Power Over Ethernet daisy chained connection simplifies installation and eliminates battery changes. Combined with the Insights Platform, Area Pro provides rich, multilayered data and analysis to help optimise space utilisation in real time and improve workplace redesign based on deep understanding.

Area Pro enables XY Sense to maintain its position as the world-leading occupancy intelligence platform. This nextgen product provides 3X coverage area, 100X greater frames per second tracking, 3X spatial resolution, with 99% accuracy, even in low light. Combined with on-board AI and online Insights Platform analytics dashboard, Area Pro’s superior performance enables advanced features such as Anonymous Dwell, Sit/Stand information, Pathways visualisation, and collaboration insights which can be used to promote wellbeing and better workspace utilisation and design. API integration enables automated and optimised HVAC, lighting, cleaning and services management, making workspaces and buildings more healthy, efficient and sustainable.

Key Specifications:Pre-loaded with the latest XYDA Model neural processing unit.Coverage Range: Up to 30 ft (9 m) radius / 3,000 sq ft per sensorDetection Capacity: Up to 255 people simultaneouslyAccuracy: ~99% accuracy; identifies locations within 15cm.Real-time Data: Updates every 2 secondsInstallation: Ceiling-mounted (2.4m - 5m height) with PoE (Power over Ethernet) and Daisy-chain support to reduce cabling by up to 80%Ceiling-mounted design to prevent tampering or removalZero battery maintenance and reduced environmental impactPrivacy: Privacy-by-design; captures anonymous X/Y coordinates rather than video or images.AI Processing: On-device neural processing unit (NPU) enabling behavioral analytics like sit-stand detection. Operational & Physical Details:Performance: Operates at low light conditions (5 lux).Dimensions & Weight: 140mm diameter / 5.5” and 50mm height / 1.97”.Weight: 250 grams / 8.8oz.Data Output: Real-time location coordinates, dwell time, and utilization analyticsIntegration: Supports integration with Microsoft 365, Google Workspace, Appspace, and other workplace management platforms. Key Advantages:Reduced Infrastructure: Replaces multiple lower-range sensors, requiring fewer devices and cables for full floor coverage.System Architecture: Uses Senselink® for daisy-chaining, allowing multiple sensors to connect to one PoE gateway, minimizing network switch costsAlways-on PoE wired connectivity for maximum uptime.Simplified deployments across large portfolios
