AVG eFloStop Leak Protection Valve

Leaks can occur around the hot water cylinder, causing gradual or immediate flood damage in Australian homes and apartments. The design challenge was to deliver accessible and convenient protection against flood damage. The solution needs to respond instantly to detected leaks, shutting off the water supply immediately to minimise all potential damage. It must be easy to install, compact to fit in tight spaces and reliable to ensure it maintains production without nuisance trips. Because of it's infrequent operation, it must be intuitive and simple to operate.

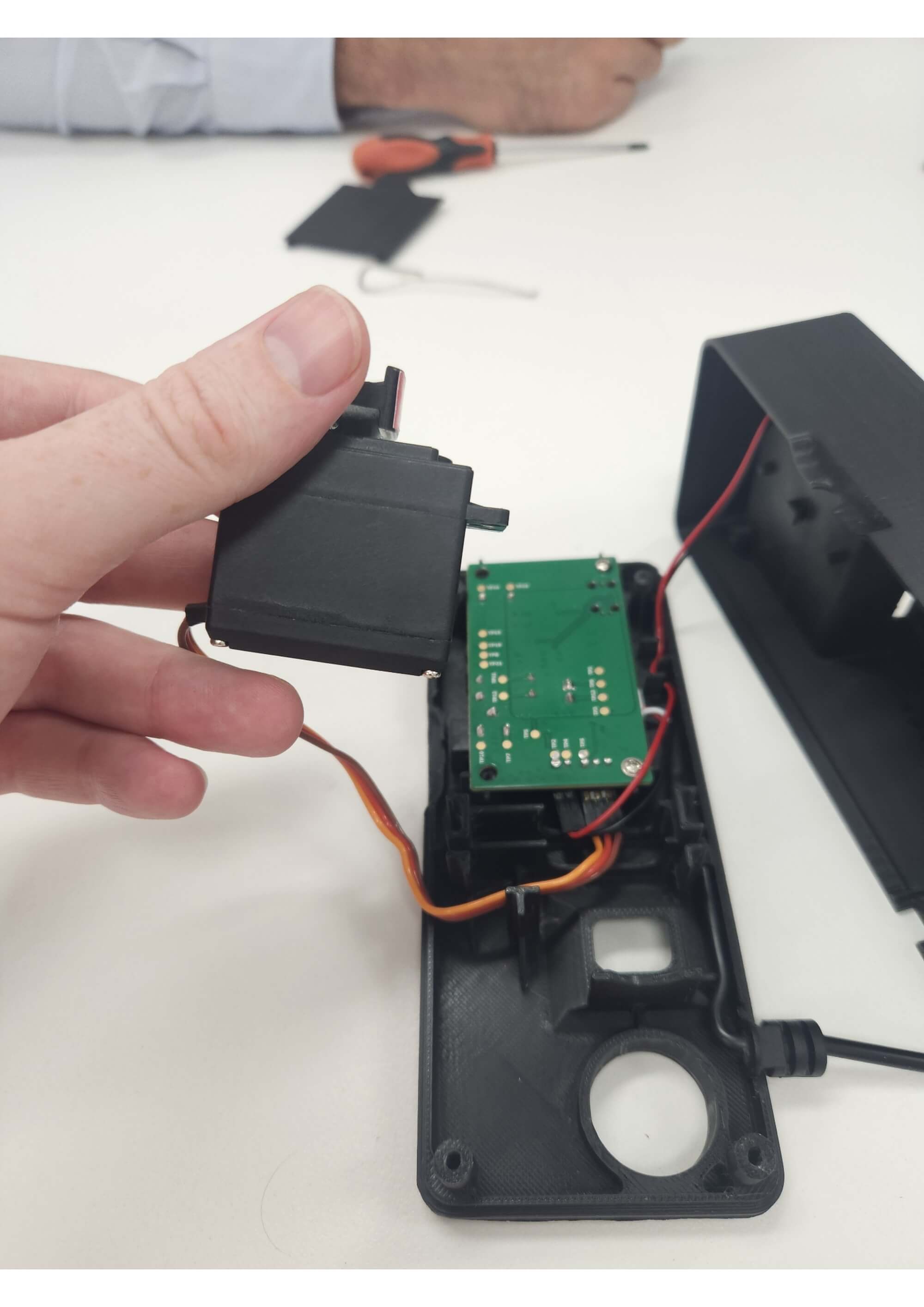

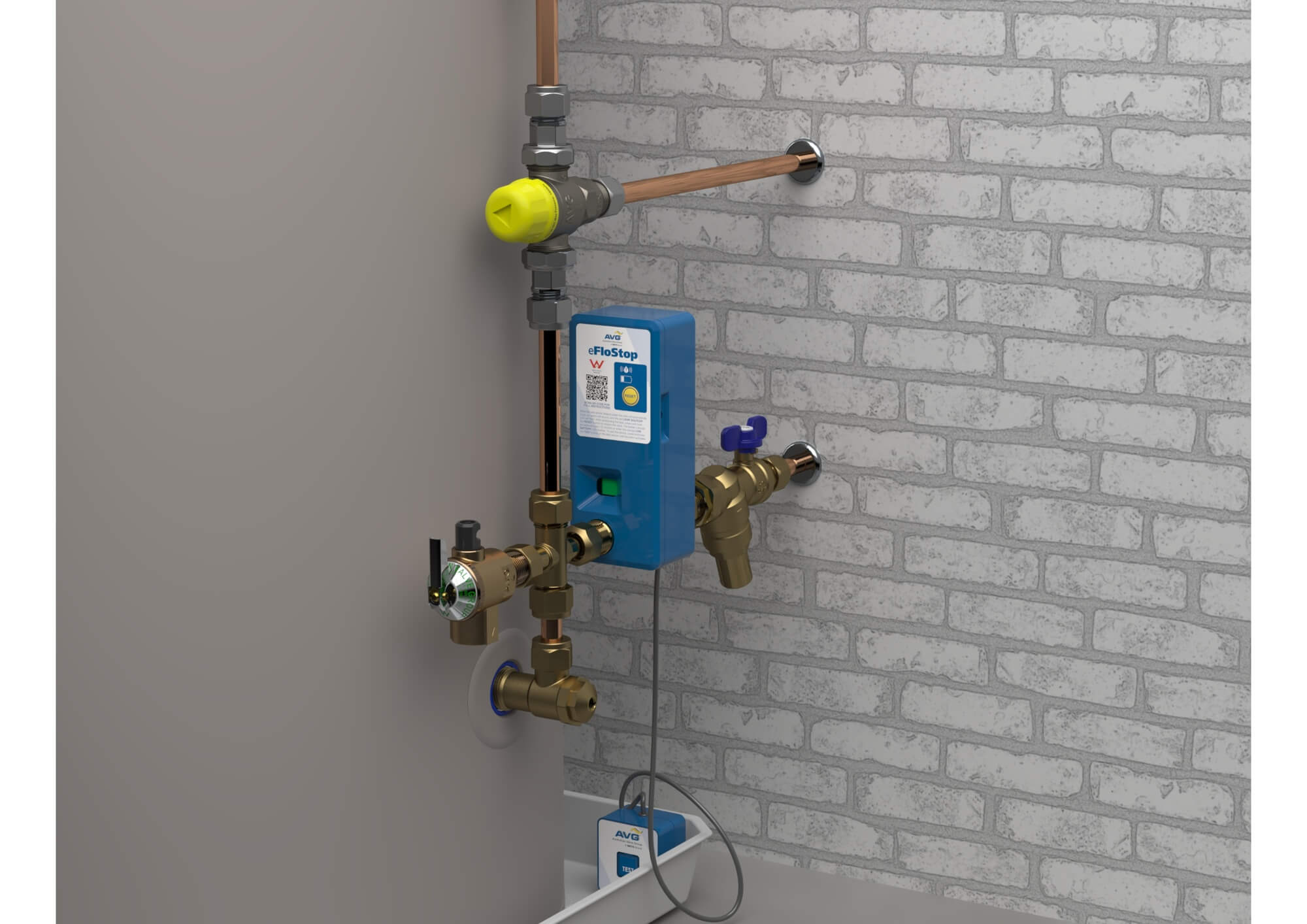

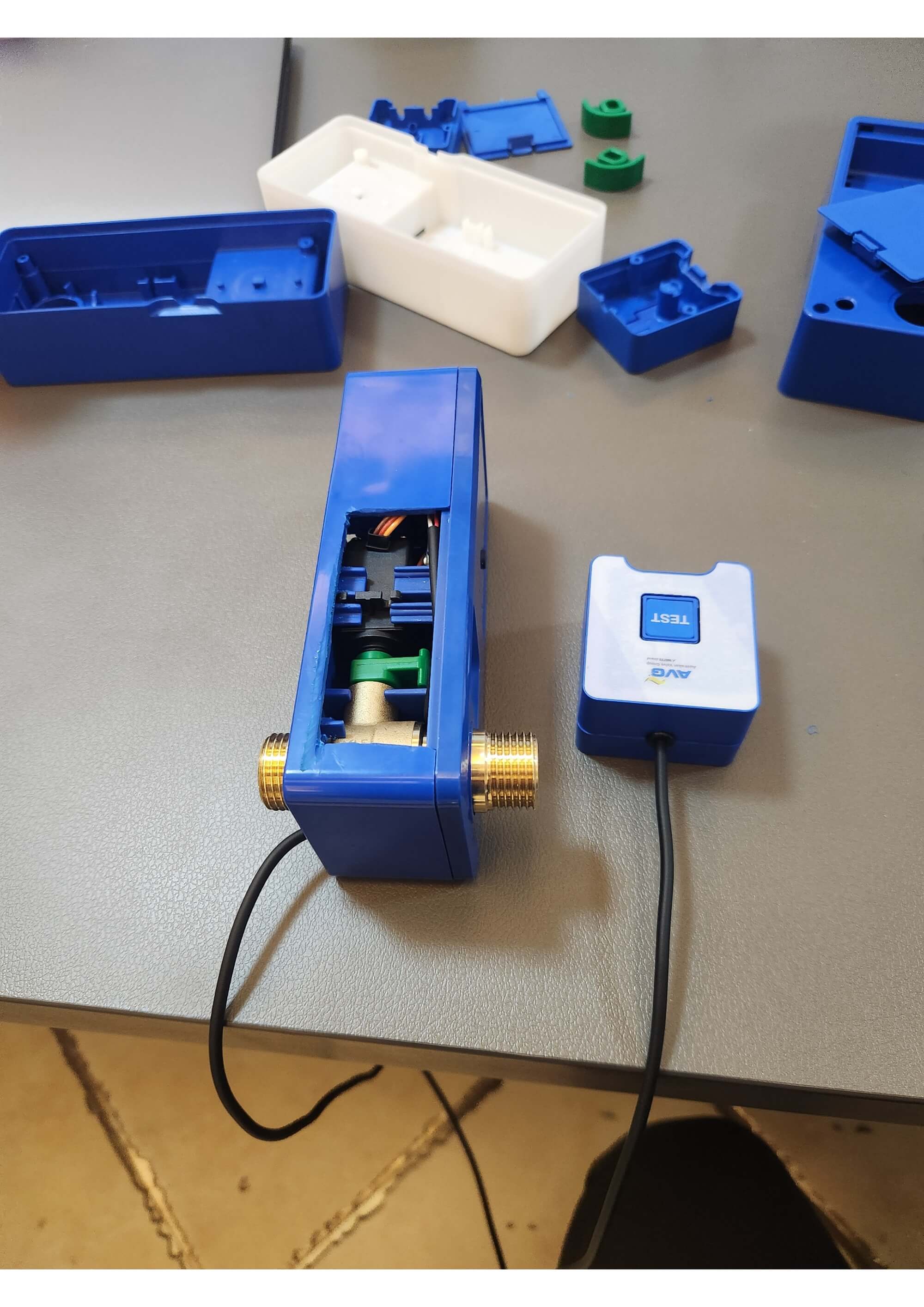

A contact sensor sits inside the hot water cylinder tray. If water contacts the probes, a motor will instantly close a valve to shut-off the mains water and pressure supply that could cause flood damage. A loud alarm and LED lights will alert the occupant to the issue. A single button press will reset the device. This has been packaged in a compact device, with convenient connections for easy installation in any orientation. Battery power guarantees leak protection, but the device can be used with an optional power supply so that the batteries don't need replacement.

By instantly shutting off the water inlet as soon as a leak is detected, eFloStop helps prevent a small tray leak becoming a damaging flood event, protecting households and building owners from repair costs, wasted water and downtime. All brass materials are lead‑free for safer drinking water. The AVG eFloStop has already be installed to protect thousands of homes across Australia.

- Peace of Mind: Automatic leak detection with contact leak sensor and audible alarm- Instant Shut‑Off: Electrically operated ball valve closes immediately when the contact sensor detects water.- Testable protection: Pressing the test button on the sensor checks the full system is working correctly, just like a smoke alarm.- Easy Installation: Quick install on indoor hot water cylinders with compression fittings which require no thread tape. Cut the pipe, tighten the nuts, done.- Low or high detection: The sensor probe can be placed flat or upright to adjust the leak detection height.- Large viewing window: Easy to see whether the valve is open or closed.- Intuitive design: 1-button reset, LED indicator lights.- Versatile: Install in any orientation, up to 1m away from the cylinder tray.- Reliable: Backup AAA batteries protect against floods, even with no power to the device. - Low maintenance: An optional power supply is included so that batteries don't need replacement. - Safe and Compliant: Watermark Certified WMTS‑476:2016. Lead-free brass to NSF/ANSI/CAN 372.
